Airport Helicopter Heliport ICAO 100cd Helipad aimpoint white lights

Product Description

• Product Picture

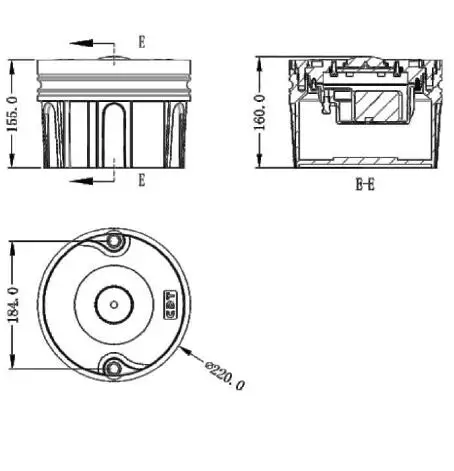

• Parameter & Diagram

Item	Parameter
Model	CM-HT12/D
Operating Voltage	AC220V/6.6V(other available)
Power consumption	≤15W
Light Intensity	100cd
Life span	>100,000 hours
Light Source	White LED
Emitting color	White
Ingress Protection	IP68
Enviroment Humidity	0-100%
Altitude	≤2500m
Operating temperature	-40℃~55℃
Net weight	3.5KG
Wind load	80m/sec.
Net Weight	6.5KG
Light Barrel Size	220mmx160mm

• Specification

1. The lamp cover adopts Glass material with excellent impact resistance (IZOD notch impact
   strength: 90), thermal stability (service temperature can be 130℃), great transparency
   (available with a light transmission of up to 90%), auto-UV resistance, aging resistance
   and flammability rating in UL94V0.
2. House of the light is made of aluminum liquid casting and oxidation treatment, the
   product features are omniseal, water tightness and corrosion resistance.
3. Light source adopts the international advanced LED featuring low power consumption,
   high efficiency and light source lifespan reaching 100,000 hr.
4. The light with surge protection device (In 7.5KA/5 times, Imax 15KA) can be used in the
   harsh environment.
