ICAO Annex 10lux White LED helipad flood lights supplier

Application

heliport flood light is a ground surface installation light. It's used to lighten the surface of the heliport, ensuring the heliport surface illumination not less than 10 Lux, making the heliport sign easy to see and giving the landing heliport accurate guidance. Uniform illumination of the heliport make the pilot to reduce eye glare as much as possible in short distance.



Key Feature of CM-HT12/N

• Using multiple optical design of parabolic curve, point of view, the more accurate visual range further.
• Built-in LED constant current protection circuit, stable work.
• Optical lens: PMMA materials with a transmittance of 93%.
• UV - resistant PC material lamp shade, more than 95% transparency, adapt to different environment.
• Flammability level of UL94V0, applicable to various industrial situations.

Parameter
Refer	ICAO Annex 14 Low Intensity Obstruction lights
Light Source	Bright LED
Light Color	White
Vertical Beam Spread	≥10º
Horizontal Beam Angle	90°
Flashing Frequency	Steady On
Lifespan	>100,000hours
Luminous Flux	10,000lum
Operation Voltage	AC110-240V  50Hz 60Hz
Power Consumption	≤60W
Operating Temperature	-55℃~+55℃
Ingress Protection	IP65
New Weight	1.5kg
Material	Lamp Cover:PC

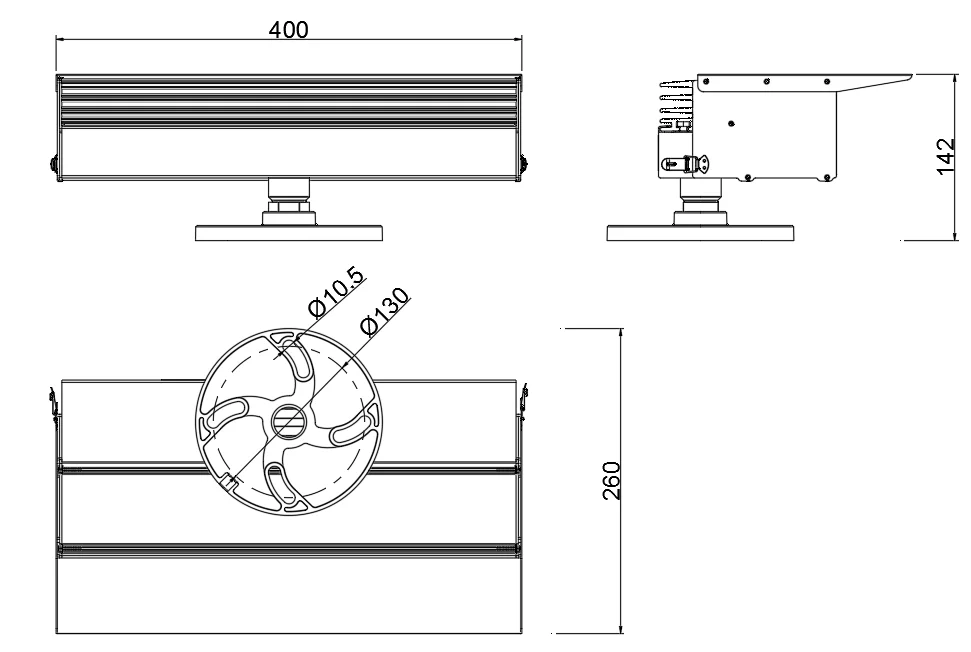

Structure	Pictures

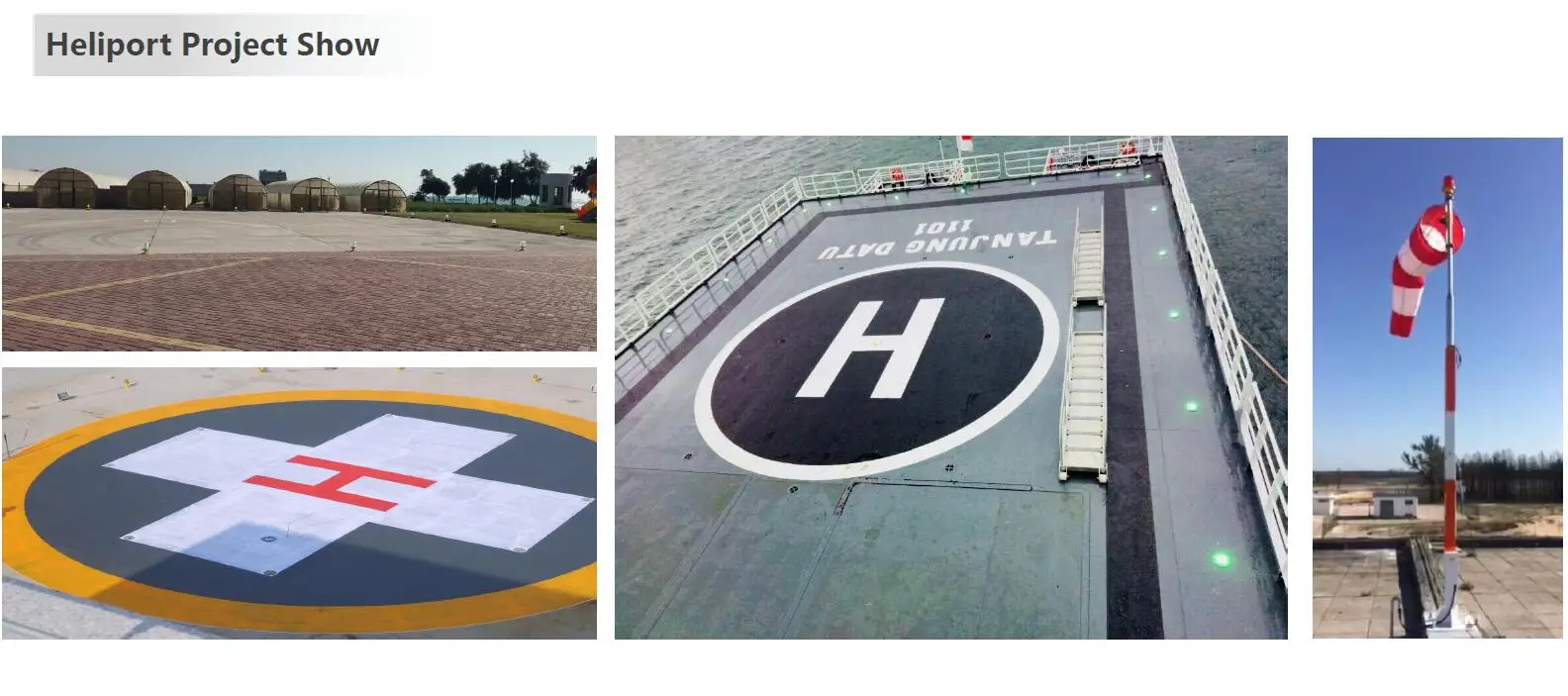

Project Pictures
